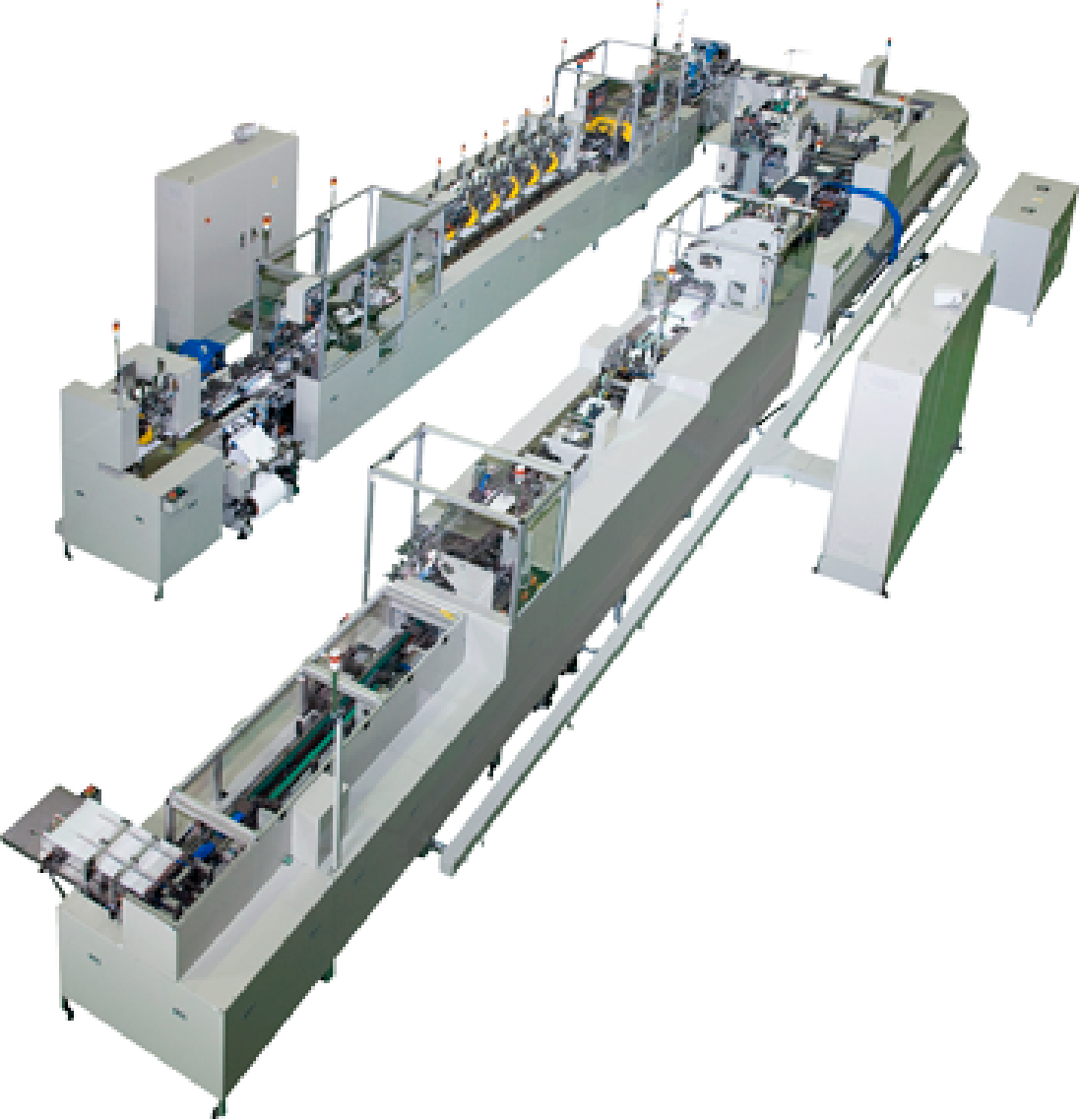

UBIO-e50 Lead Machine
All UNO's book binding technologies are integrated into one machine.
The Lead Machine is one of UNO's ultimate automation system.
The Lead Machine collates the sheets, sews those sheets by the dedicated sewing machines, and attaches the cover & those sewn sheets. In this process, the system can also take RFID inlay cards (e-Cards), RFID inlay sheets (to make e-Covers) or e-Covers for e-Passport production. Materials such as paper, cover, thread, and inlay at the entrance will be turned to the strip (2-up booklets) at the exit.
- Feeder
- Gathering
- Pre-cut
- Sewing
- Stamping
- Cover attaching
- Folded strip

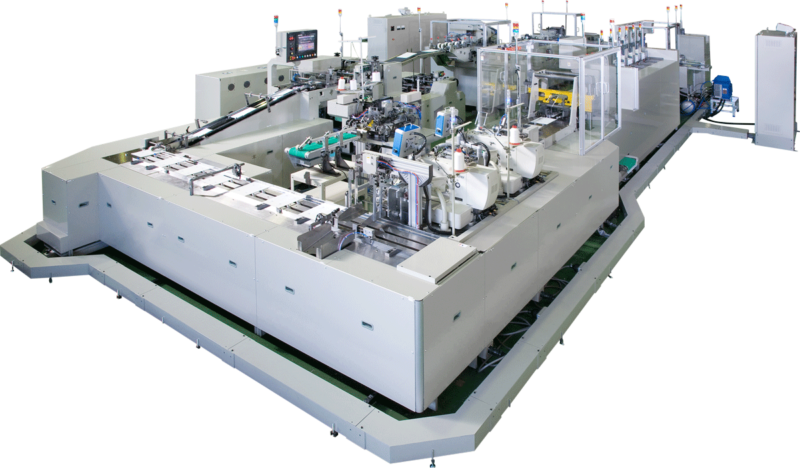

UBIO-e80 Lead Machine
All UNO's book binding technologies are integrated into one machine.
The Lead Machine is one of UNO's ultimate automation system.
The Lead Machine collates the sheets, sews those sheets by the dedicated sewing machines, and attaches the cover & those sewn sheets. In this process, the system can also take RFID inlay cards (e-Cards), RFID inlay sheets (to make e-Covers) or e-Covers for e-Passport production. Materials such as paper, cover, thread, and inlay at the entrance will be turned to the strip (2-up booklets) at the exit.
- Feeder
- Gathering
- Pre-cut
- Sewing
- Stamping
- Cover attaching
- Folded strip

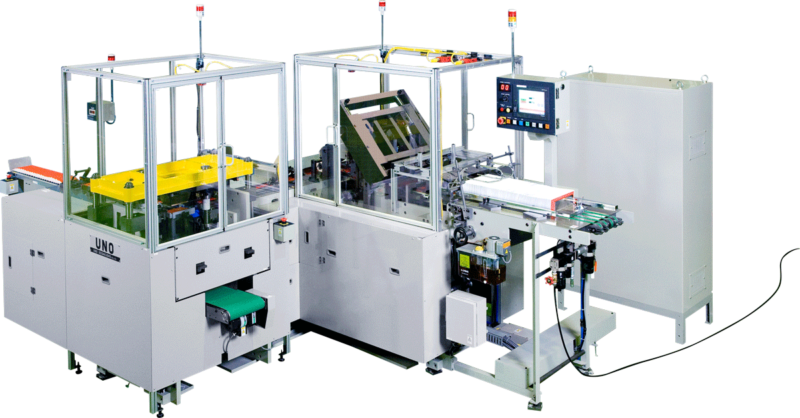

UBIO-e50 Follow Machine
Follow Machine can be used as a stand alone or linked.
The strip quickly becomes booklets!
After the Lead Machine, the strip will be fed to this Follow Machine and come out as passport size booklets by die cutting. This system can be used as a stand alone or linked with the laser perforation system (which will be the next process of passport manufacturing).
- Strip feeder
- Splitter
- Die cutting

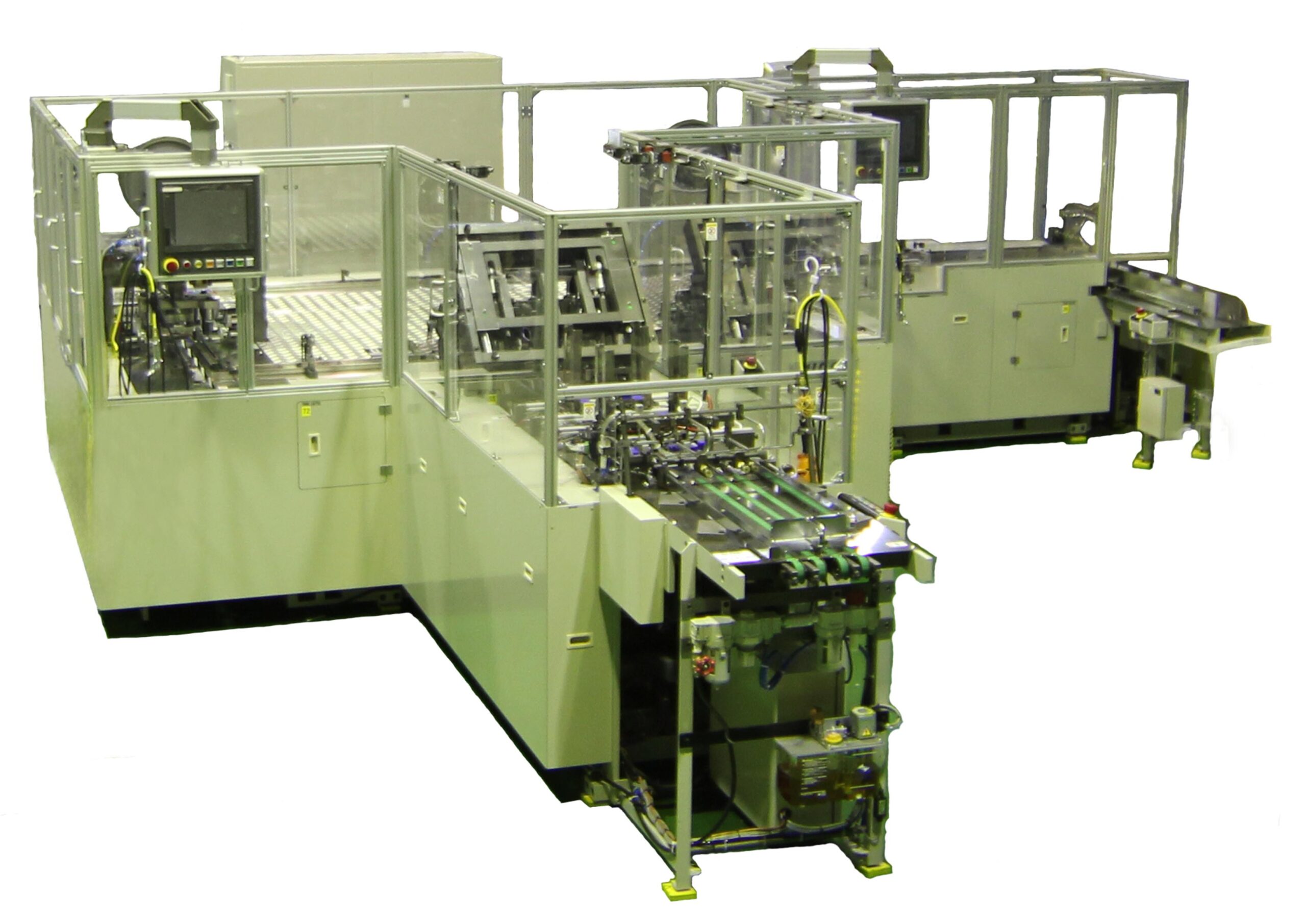

UBIO-e80 Follow Machine
Follow Machine can be used as a stand alone or linked.
The strip quickly becomes booklets!
After the Lead Machine, the strip will be fed to this Follow Machine and come out as passport size booklets by die cutting. This system can be used as a stand alone or linked with the laser perforation system (which will be the next process of passport manufacturing).
- Strip feeder
- Splitter
- Die cutting

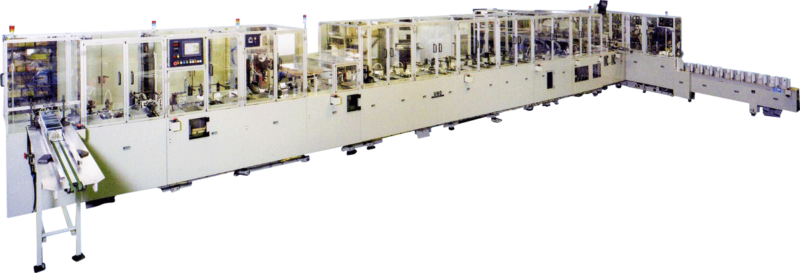

UBIO-e50 Laser Perforation
UNO's advanced material handling technology and centralized control integrates with multiple special devices seamlessly
After the Follow Machine, the strip becomes the passport size booklet. This system prints the passport number (numbering) and laser perforating with meeting your specific requirements. As the demand of the high security features is increasing, we are integrating a lot of special devices such as Laser marking, labeling and packaging with this system these days. Despite the increased number of special devices, UNO's advanced material handling technology and centralized control integrates with multiple special devices seamlessly.
- Feeder
- Opener
- Numbering
- Laser perforating
- Pre-personalization
- Closer
- Delivery
