The system allows you flexible operation!

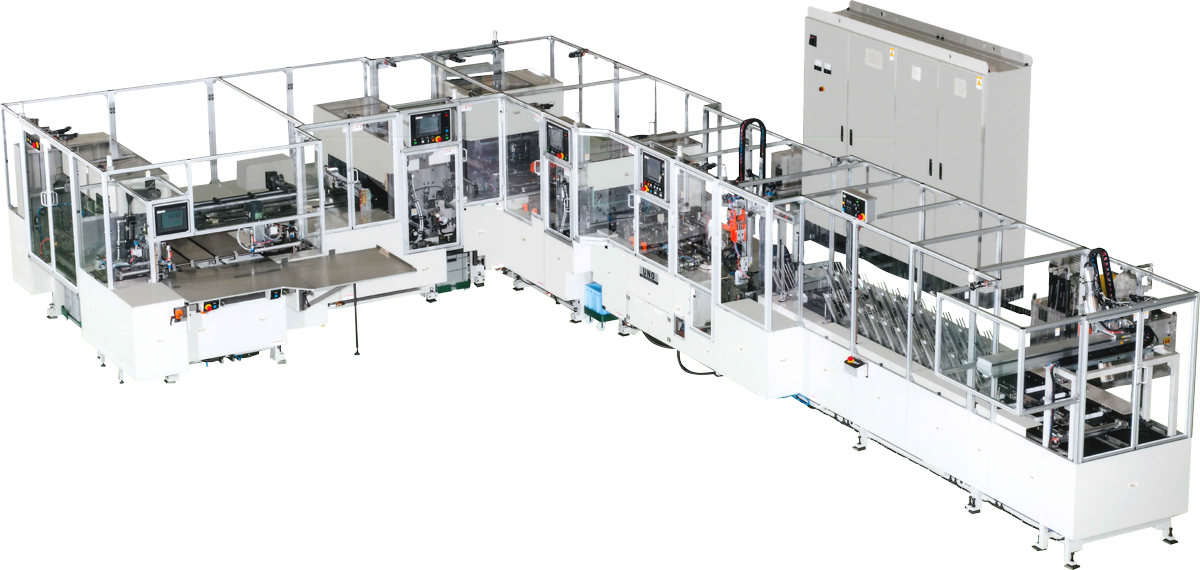

UNO Fully Automated Banknote Finishing and Linkage System
UNOCS-4F/Link & 8F/Link SYSTEM
UNO's Banknote Finishing System is able to synchronize with the Quality control machine (single note inspection machine) nicely!
UNO Fully Automated Banknote Finishing and Linkage System is able to synchronize with the Quality control machine nicely. Our system achieves seamless production with UNO original flat buffer system in order to meet flexible operation even if the throughput of the Quality control machine shall be reduced and also our system pauses automatically at the originated position (cyclic stop point) without any damage for the materials before the Quality control machine would overflow.

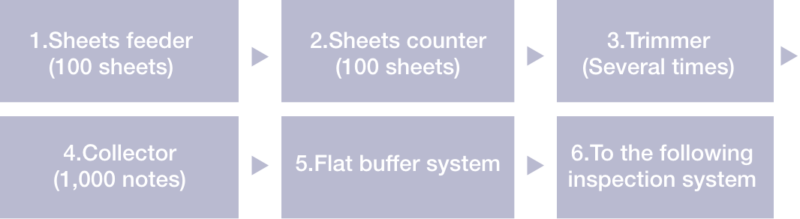

Process chart of Banknote finishing & linkage system
SPECIFICATIONS

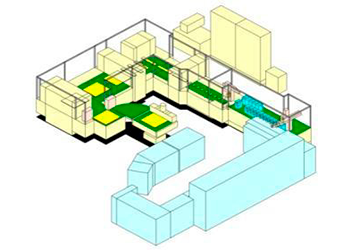

UNOCS-4F/Link
Banknote Finishing and Linkage System
Throughput: 180,000 notes/hour

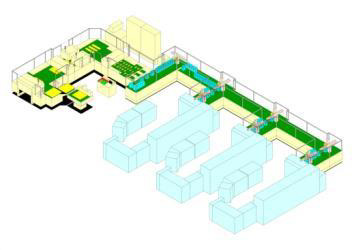

UNOCS-8F/Link
Banknote Finishing and Linkage System
Throughput: 450,000 notes/hour
Banknote specification
Cutting of sheets
Across: 4 notes - 6 notes
Down: 5 notes - 10 notes
Size
Width: 450mm - 820mm
Length: 475mm - 700mm
Single banknote
Width: 120mm - 180mm
Length: 60mm - 90mm
Thickness
every 100 sheets: 10mm - 15mm
every 1000 sheets: 100mm - 150mm
